Drill stands dr. Schulze Xpert series

Dr.Schulze drill stands Xpert series to use with drill motors

B-16
Durable and handly drill rigs with feeding unit with patented roll guide system for drilling diameters up to d 160 mm
• feeding with replaceable gear rack
• patented feeding unit with roll guides (with ball bearings)
• foot plate with leveling screws
• column up to 60° for- and backwards inclinable
• column, foot plate and rolls made of stainless steel

B-25
Durable and handly drill rig with feeding unit with patented roll guides for drilling diameters up to d 250 mm
• feeding with replaceable gear rack
• feeding unit with roll guides (with ball bearings)
• foot plate with setting screws
• column up to 60° for- and backwards inclinable
• column, foot plate and roll made of stainless steel
Common Characteristics
B-40
Durable drill rig with feeding unit with patented roll guides for drilling diameters up to d 350 mm with high power drill motors
• feeding with replaceable gear rack
• feeding unit with roll guides (with ball bearings)
• foot plate with setting screws
• column up to 60° for- and backwards inclinable
• column, foot plate and roll made of stainless steel

B-60
Durable drill rig with feeding unit with patented roll guides for drilling diameters up to d 600 mm with high power drill motors Can be used with long or extra long core drills.
• feeding with replaceable gear rack
• feeding unit with roll guides (with ball bearings)
• foot plate with setting screws
• column up to 60° for- and backwards inclinable
• column, foot plate and roll made of stainless steel
• transport wheels

B-100
Extreme robust drill rig with patented ball-bearing guide system and massive column support for bores up to d 1000 mm for hydraulic and electrical drilling motors up to 8 kW power
• double gear box with two feeding speeds (1:29 and 1:12)
• quick release system for drilling motors
• quick release spacer for bores up to d1000 mm
• feeding motion by exchangeable rack
• feed unit guided by rollers with heavy-duty ball bearings
• foot plate with leveling screws
• column tiltable 20° forwards and 60° backwards
• column, foot plate and rollers made of stainless steel
• transport wheels and column support serial

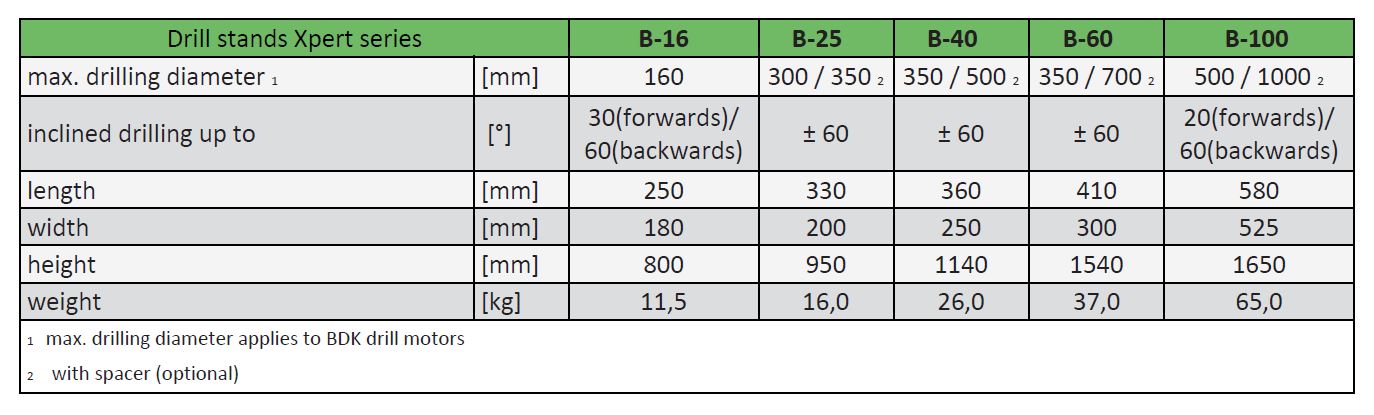

Technical Specifications
Technical Specifications
