Used for heavy work in renovation, demolition, road building, line installation and more.
Operator friendly VR - The vibro-reduced handles with four dampening springs, central pivot pin and long solid steel handles give better vibration reduction and a high level of operator comfort
High power
Powerful, reliable performance day in and day out
Common Characteristics

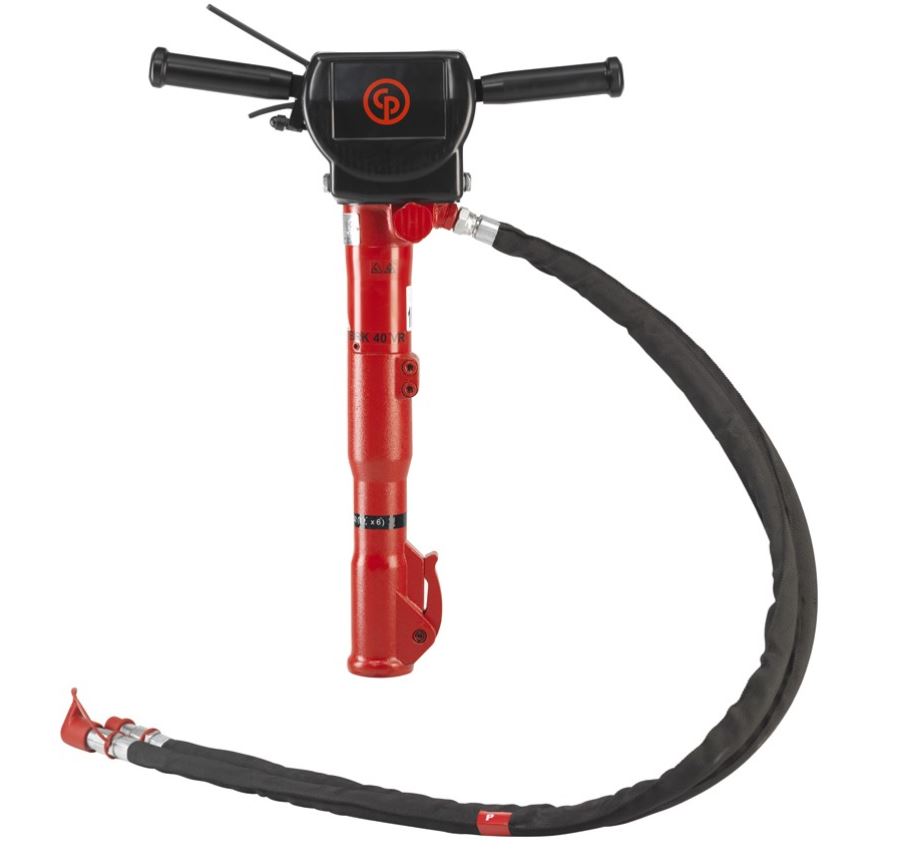

BRK 40 - Lightweight, multi-purpose breakers
The perfect choice for indoor and outdoor renovation and demolition jobs, BRK 40 breakers have a good impact energy combined with a high frequency, at a comparable low-weight. Brickwork, frozen soil, asphalt, and concrete are no match for these tough, lightweight breakers. Frequently chosen by contractors and rentals, BRK 40 breakers are also effective for tamping and compaction and are used by railroad companies for tie tamping applications.
VR = Vibro-reduced model
Technical Data
| Parameter | Value |
|---|
| Length | 650
mm |
| Oil Flow | 20
l/min |
| Working Pressure | 95-110
bar |
| Maximum Return Line Pressure | 10
bar |
| EHTMA Class | C
|
| Vibration Level 3 Axes (ISO 28927-10) | 5
m/s2 |
| Sound Power Level Guaranteed (2000/14/EC) | 106
dB(A |
| Sound Pressure Level (ISO 11203) (Lp, r=1m) | 93
dB(A |
| Impact Rate | 1400
blow/min |
| Shank Size Hex | 25 x 108
mm |
| Weight with Hoses | 25
kg |
