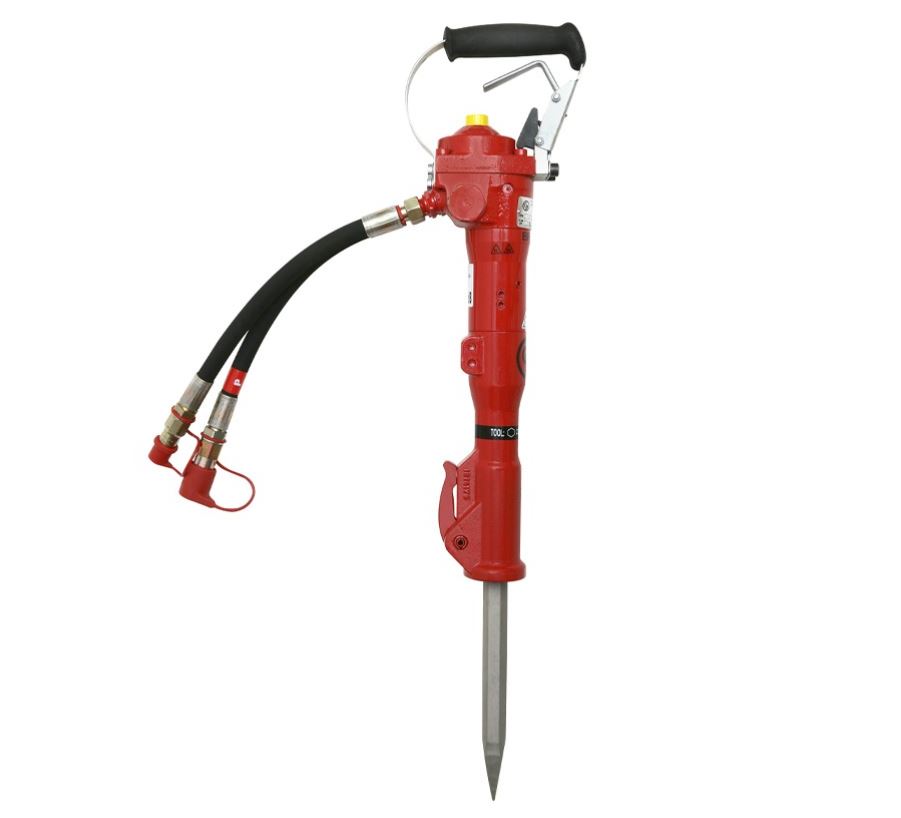

Hydraulic Pick Hammer CP BRK 25 D

With a high impact power and giving 2,400 blows/min., our BRK 25 D D-handle hammer is the powerful choice for horizontal work in renovation, demolition and structural alteration. The detachable front handle, available as an optional extra, pivots 360° for optimal positioning. The tool is well balanced, with no external side bolts and protruding machine parts that can come into contact with the operator’s body.
Common Characteristics
Easy handling
Lightweight for horizontal work
Easy operation
Slim design for excellent line of sight to the working tool point
Fast preparation
Fitted with flat face quick-release couplings for fast, easy connections
Technical Data
Weight Without Hoses12.6  kg
Length650  mm
Oil Flow20  l/min
Working Pressure80-100  bar
Maximum Return Line Pressure10  bar
Vibration Level 3 Axes (ISO 28927-10)16.5  m/s2
Sound Power Level Guaranteed (2000/14/EC)105  dB(A
Sound Pressure Level (ISO 11203) (Lp, r=1m)92  dB(A
Impact Rate2.300  blow/min
Shank Size Hex22 x 82.5  mm
Part Number 1801 1746 12
