Stationary beveller SBM-500 for machining straight edges of different size workpieces.
Common Characteristics
workpiece height up to 100 mm
powerful 7.500 W motor

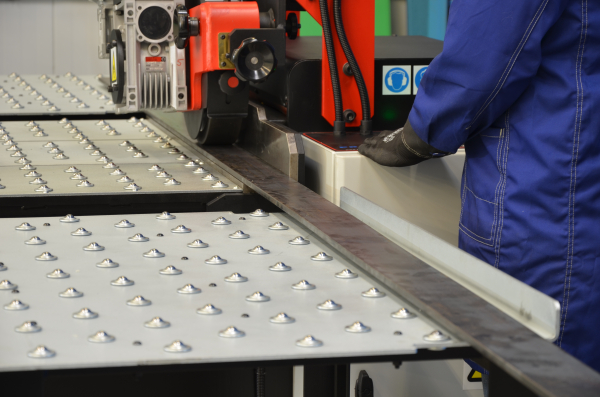

ergonomic ball roller bench
swarf drawer
supplementary tables to ccommodate long workpieces
pipe beveling attachment for pipes 50-150 mm (2-6”) OD
3D contact wheel control ensures proper workpiece alignment in relation to milling head
very high surface quality
high speed rotary milling head equipped with 10 inserts
cutting inserts dedicated to various materials
no heat affected zones or distortion of the workpiece
easy access to milling head and cutting inserts
precise setting of bevel angle from 15 up to 60 degrees and bevel width up to 30 mm
continuous adjustment of spindle speed and feed rate make it suitable for different types of steel and aluminum
Technical Data
| Parameter | Value |
|---|
| Voltage | 3¬ 400
V |
| Power | 7500
W |
| Spindle speed (without load) | 500-2920
rpm |
| Bevel angle (depending on milling head) | 15-60
|
| Maximum bevel width | 30
mm |
| Minimum workpiece thickness | 850
mm |
