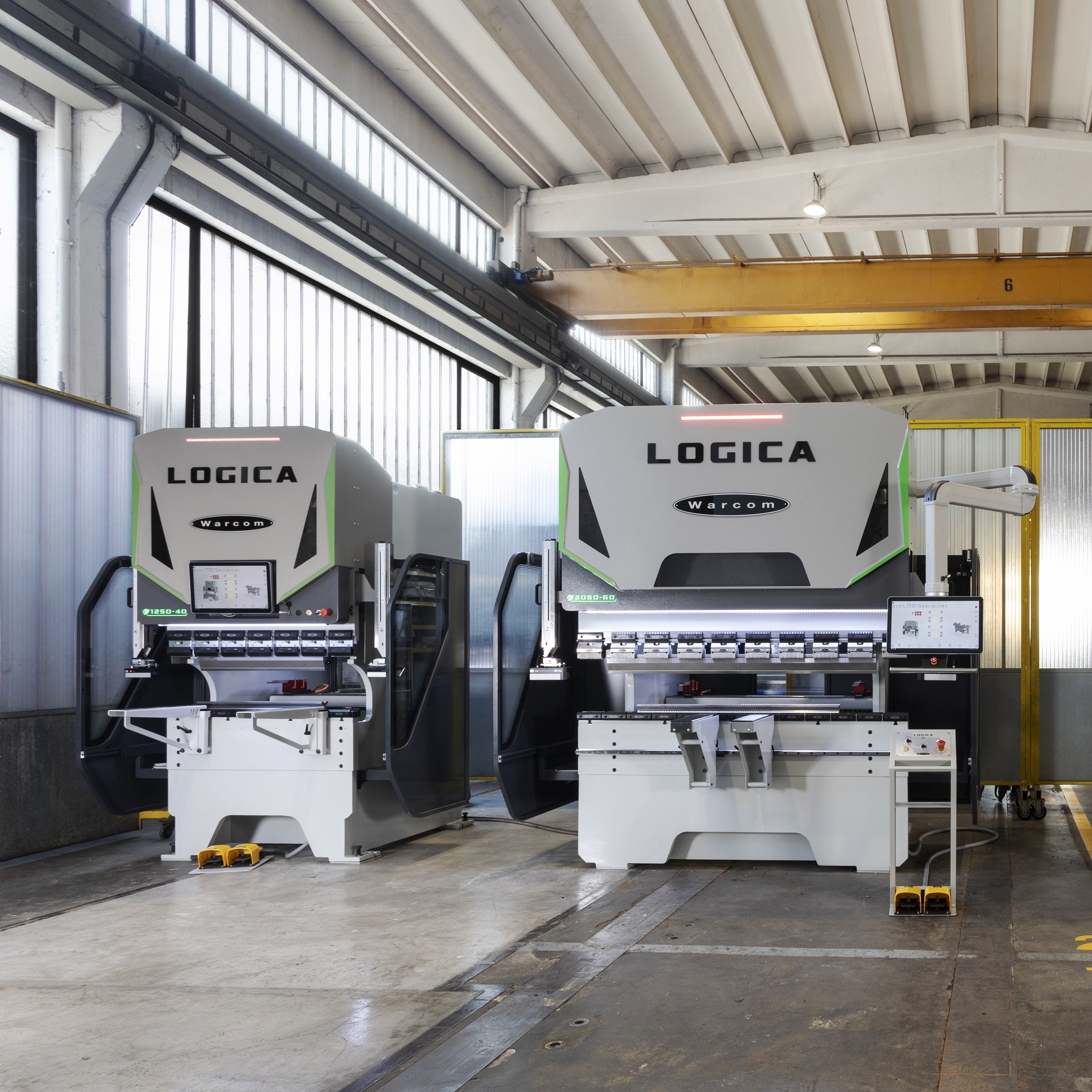

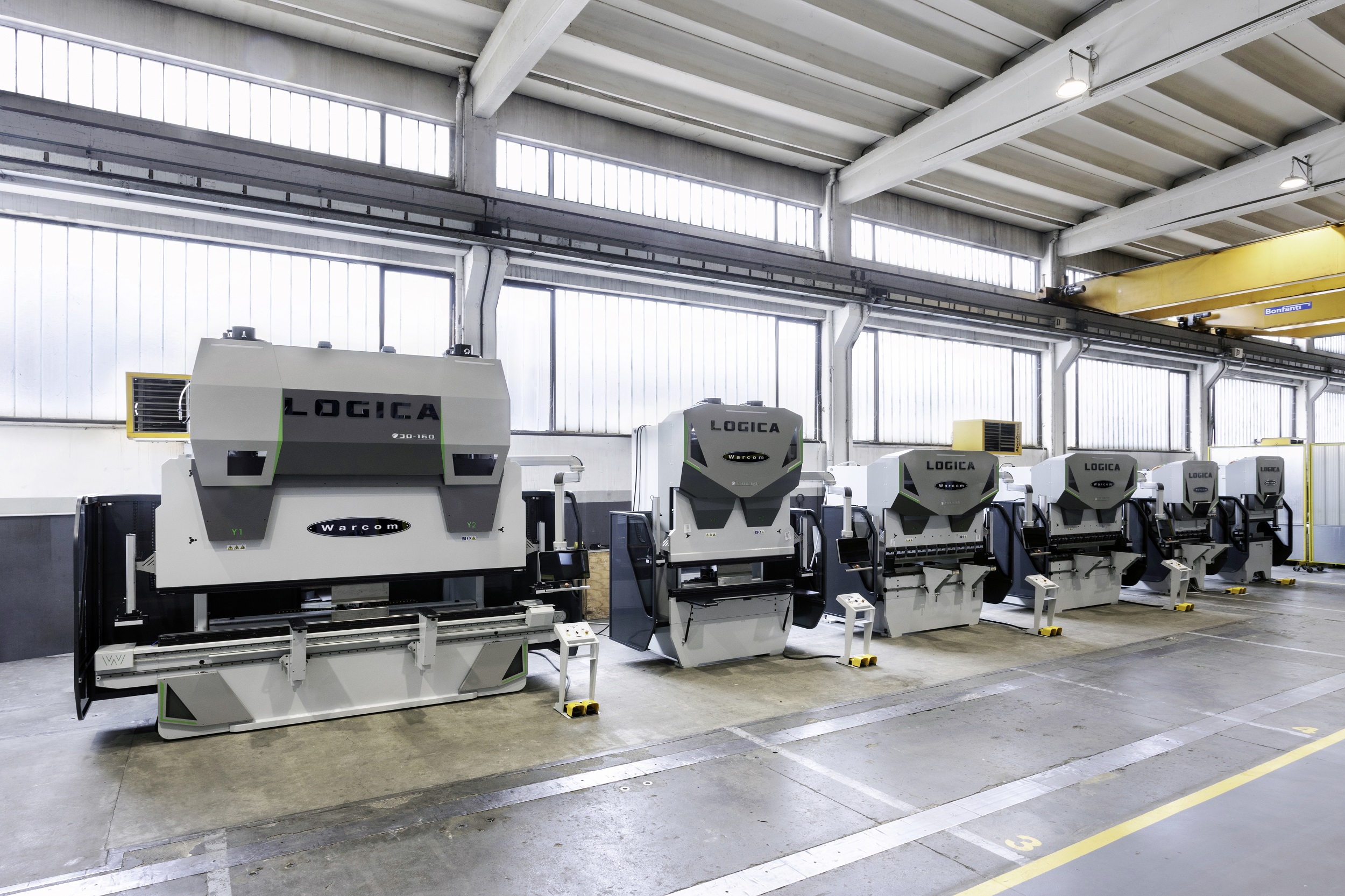

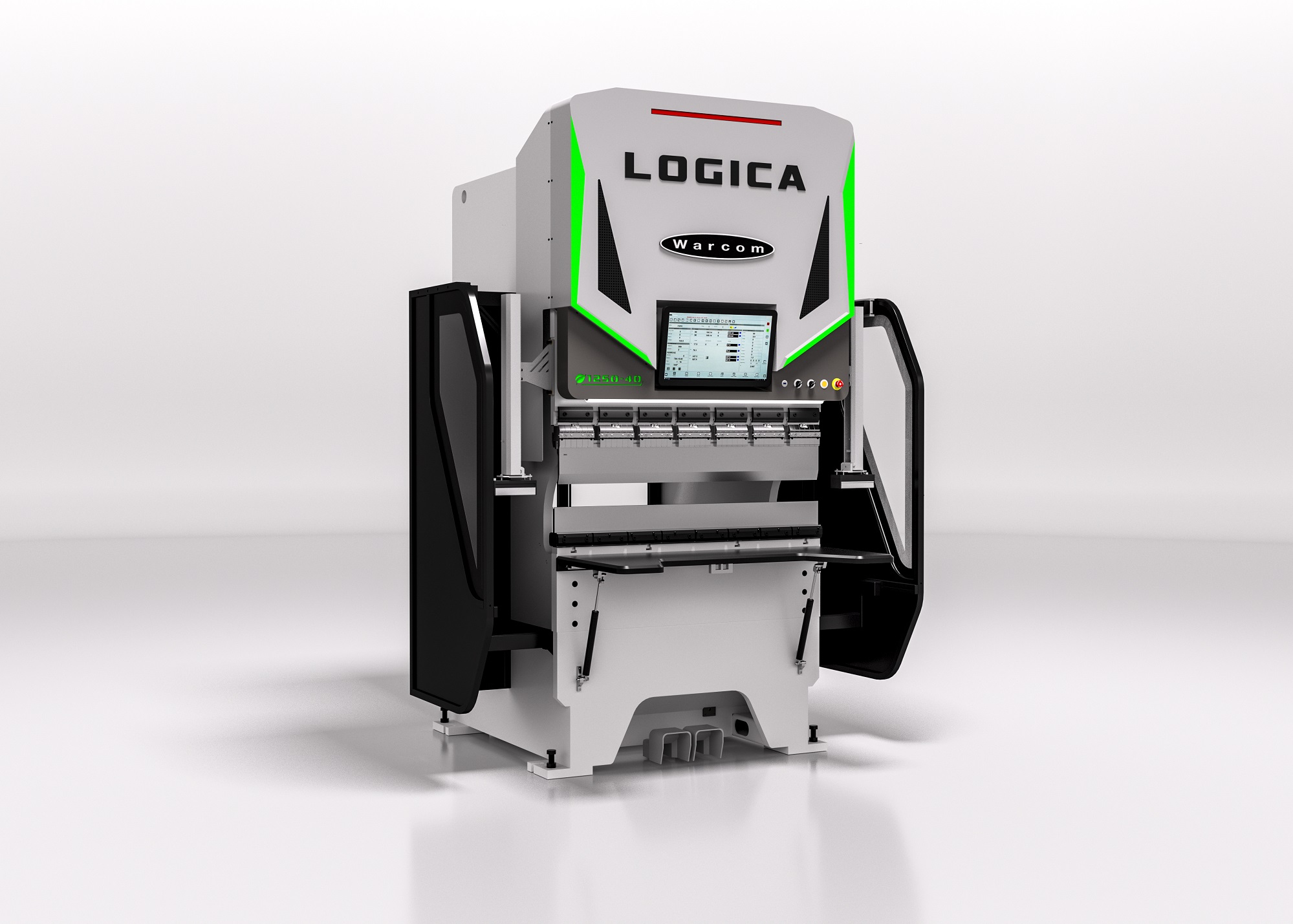

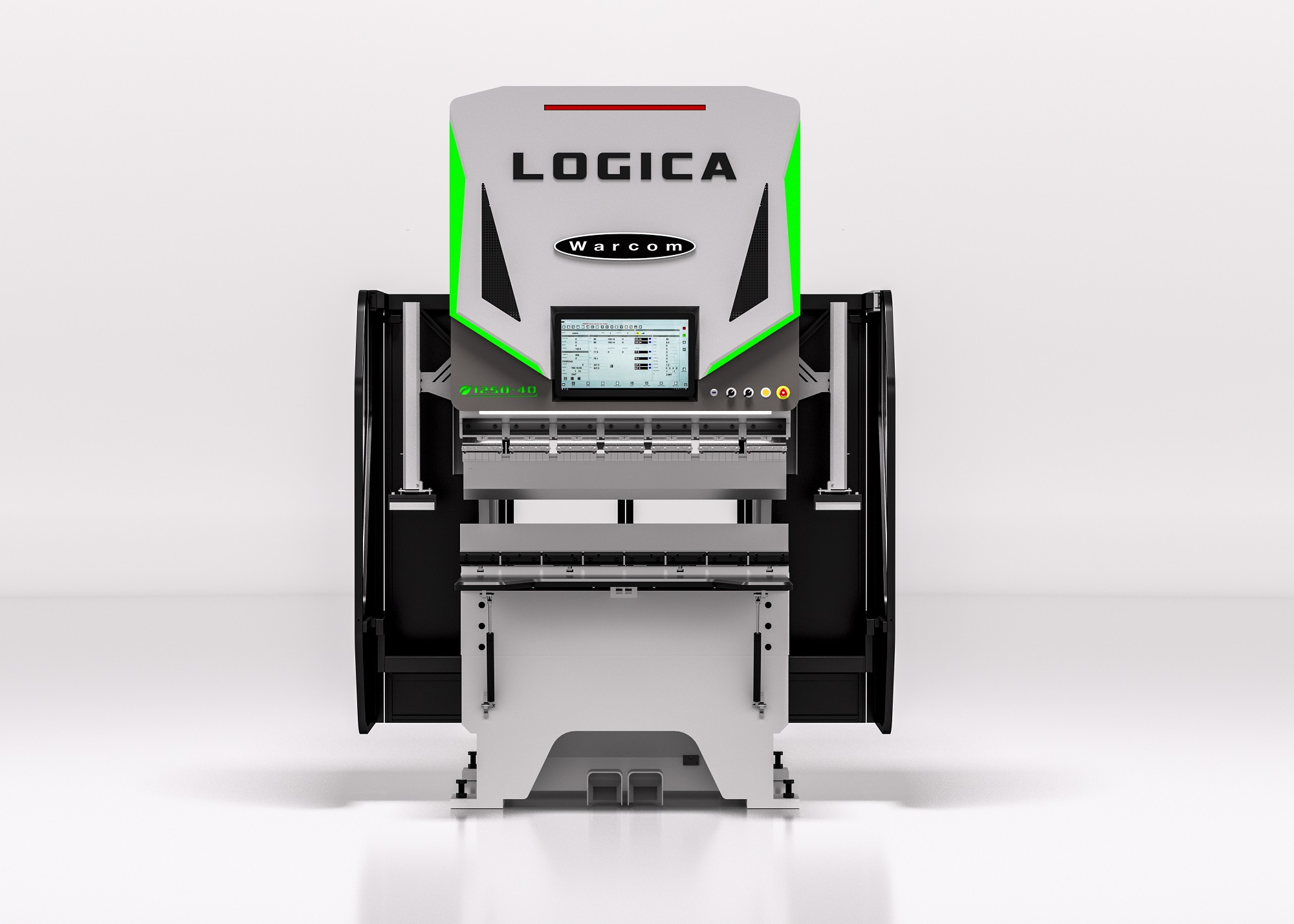

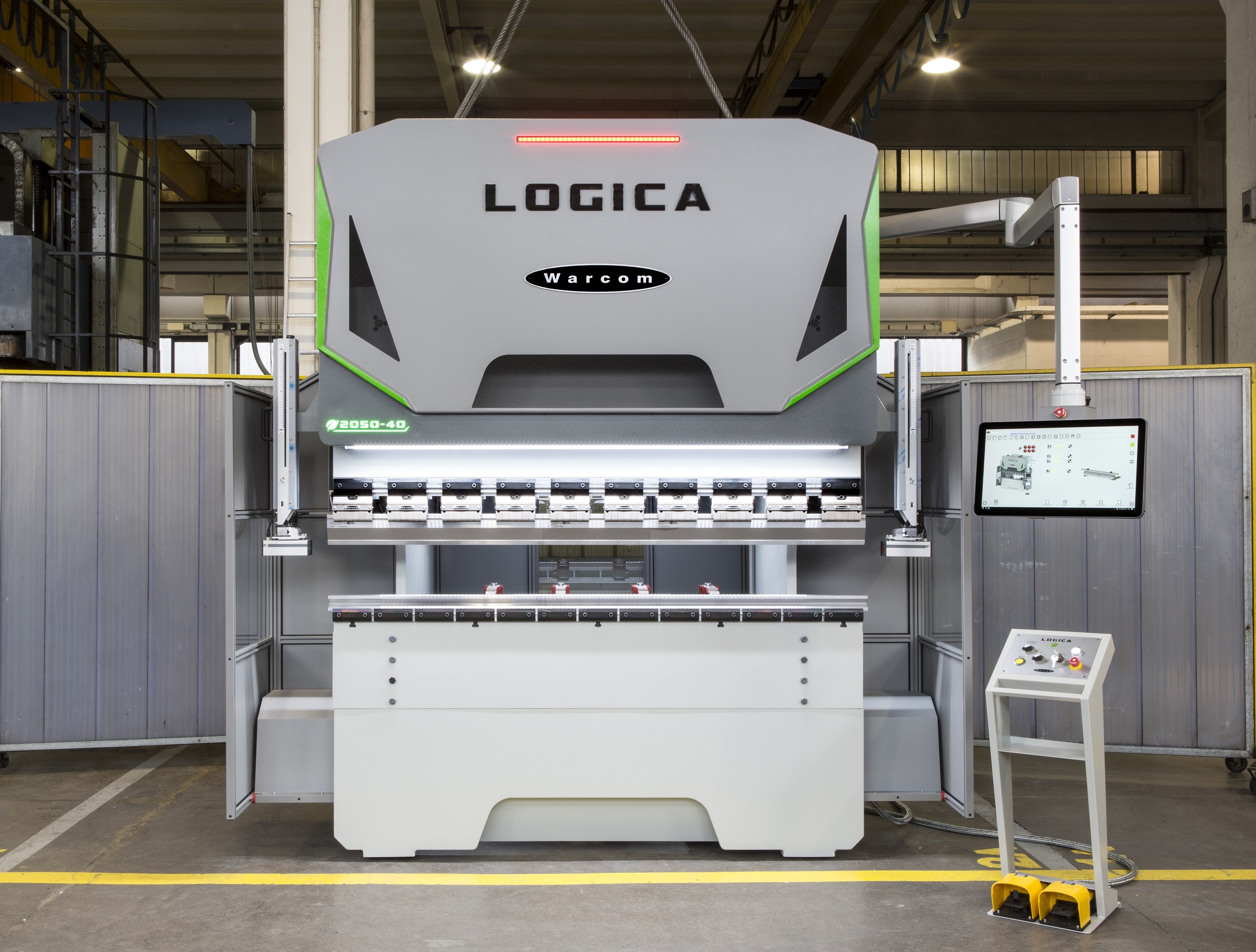

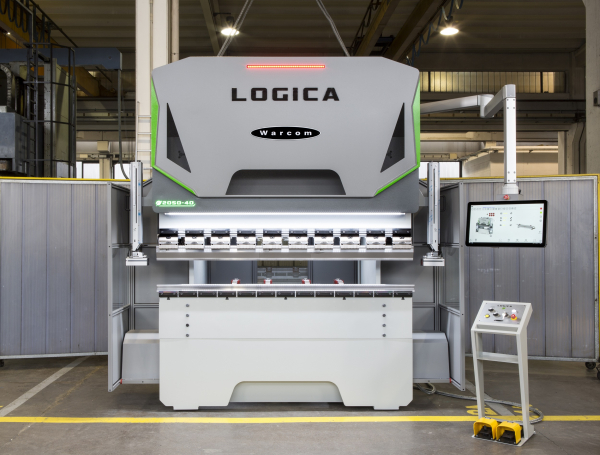

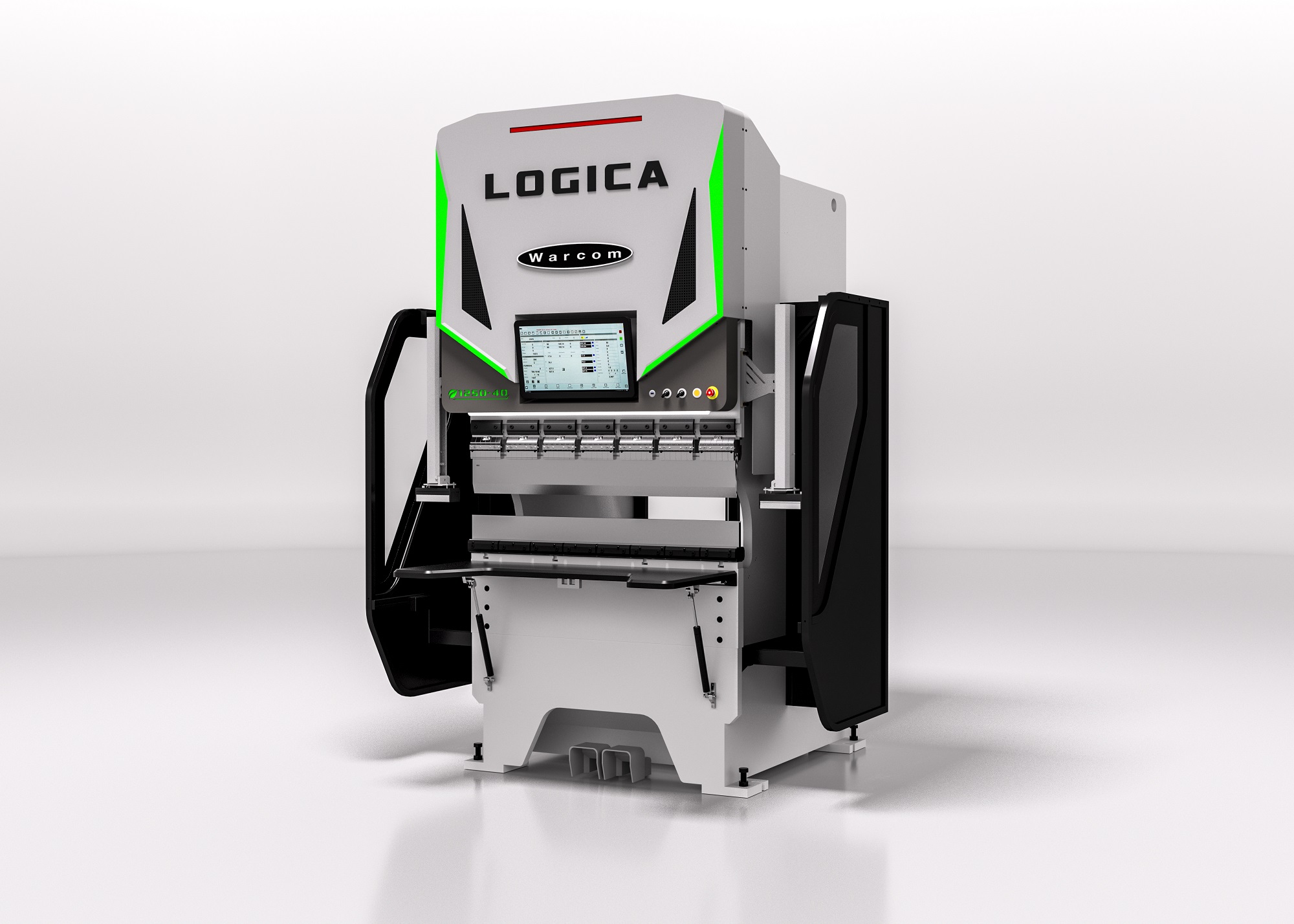

The model LOGICA is a high-tech electric machine designed for precision bending of parts with high speed and repeatability. It is the ideal solution for the precise processing of smaller components, combining high productivity with eco-friendly efficiency.
Common Characteristics
Key Technical Components and Technologies
- Direct Transmission and Motors
A revolutionary direct-drive system using Torque motors coupled directly to high-load precision ball screws. This configuration eliminates the need for transmission components, making the machine exceptionally reliable, quiet, and energy-efficient.
- Construction and Precision
Sliding System: The upper beam moves on dual roller bearings made of hardened and ground steel.
Optical Scales: Mounted directly on the frame to eliminate deformation errors, ensuring an upper beam positioning accuracy of +/- 0.005 mm — twice as high as traditional hydraulic presses.
CNC Control – TALENTO: Equipped with a 21-inch multi-touch screen. The software is developed by Warcom to be highly intuitive and user-friendly for the operator.
- Backgauge System
The M1 backgauge, specifically designed for LOGICA, is fast, accurate, and high-performing—perfect for the machine's compact configurations.
Controlled Axes: The system can manage the following axes: X-R-Z1-Z2-X5-X6.
Note: Warcom also offers other series (M3, M6, M6W) with various stroke options and axis counts, but the M1 is specifically optimized for the LOGICA series.
- Angle Measurement Systems (Options)
DATA-M: A laser system guaranteeing a precise angle from the very first part by compensating for material variations.
BCS (Bending Control System): Measures the actual angle in real-time during the bending process.
- Tool Clamping
Supports Wila (manual or pneumatic) and Promecam / European standards, providing flexibility and rapid tooling changeovers.
Safety: Integrated LazerSafe systems, including the IRIS-FAST BEND option for high-speed operation (up to 20 mm/s) in full compliance with CE regulations.
Business Advantages
- 100% Electric: No need for oil or filter changes, low maintenance, and a "green" solution for Industry 5.0.
- Extreme Speed: Reaches up to 300 mm/s approach and return speeds.
- Precision: High standards of accuracy guaranteed by in-house component manufacturing using the latest generation of milling machines.
| Model (LOGICA) |
Bending Force (Ton) |
Working Length (mm) |
Distance between uprights (mm) |
Daylight (mm) |
Screw Stroke (mm) |
X-axis Stroke (mm) |
R-axis Stroke (mm) |
Speeds (mm/s) [Approach / Bending / Return] |
Power (kW) |
|
1250-40 |
40 |
1050 |
1050 |
450 |
230 |
500 |
250 |
300/10-20/300 |
4200 |
|
1700-40 |
40 |
1200 |
1200 |
450 |
230 |
500 |
250 |
280/10-20/280 |
4700 |
|
2050-40 |
40 |
2050 |
1550 |
450 |
230 |
500 |
250 |
280/10-20/280 |
5000 |
|
1250-60 |
60 |
1250 |
1050 |
450 |
230 |
500 |
250 |
300/10-20/300 |
4400 |
|
1700-60 |
60 |
1700 |
1200 |
450 |
230 |
500 |
250 |
280/10-20/280 |
4900 |
|
2050-60 |
60 |
2050 |
1550 |
450 |
230 |
500 |
250 |
270/10-20/270 |
5200 |
|
2500-60 |
60 |
2500 |
2050 |
450 |
230 |
500 |
250 |
250/10-20/250 |
5600 |
|
3200-60 |
60 |
3200 |
2550 |
450 |
230 |
500 |
250 |
250/10-20/250 |
6000 |
|
2050-80 |
80 |
2050 |
1550 |
500 |
280 |
400 |
200 |
250/10-20/250 |
7500 |
|
2500-80 |
80 |
2500 |
2050 |
500 |
280 |
400 |
200 |
250/10-20/250 |
10200 |
|
3200-80 |
80 |
3200 |
2550 |
500 |
280 |
400 |
200 |
250/10-20/250 |
11500 |
|
2050-100 |
100 |
2050 |
1550 |
500 |
280 |
400 |
200 |
250/10-20/250 |
7500 |
|
2500-100 |
100 |
2500 |
2050 |
500 |
280 |
400 |
200 |
250/10-20/250 |
10200 |
|
3200-100 |
100 |
3200 |
2550 |
500 |
280 |
400 |
200 |
250/10-20/250 |
11500 |
|
2050-130 |
130 |
2050 |
1550 |
600 |
380 |
400 |
200 |
230/10-20/230 |
11500 |
|
2500-130 |
130 |
2500 |
2050 |
600 |
380 |
400 |
200 |
230/10-20/230 |
13000 |
|
3200-130 |
130 |
3200 |
2550 |
600 |
380 |
400 |
200 |
230/10-20/230 |
15000 |
|
3200-160 |
160 |
3200 |
2550 |
600 |
380 |
400 |
200 |
230/10-20/230 |
16000 |
