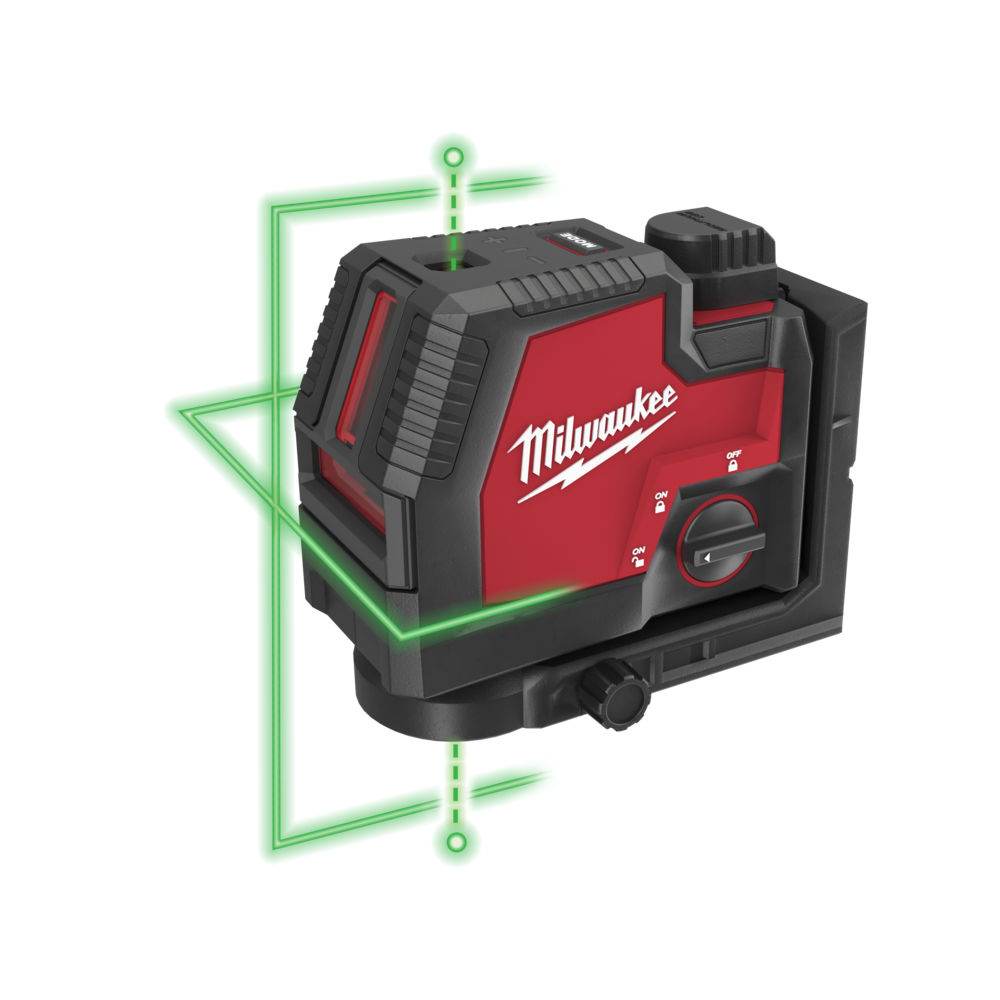

USB rechargeable green cross line lase with plumb points
Common Characteristics
- REDLITHIUM USB rechargeable green cross line laser with plumb points provides an all-in-one functionality with horizontal levelling, vertical alignment and plumb point transfer from floor to ceiling;
- Built with high intensity green diodes to provide uncompromised visibility - up to 4x better visibility vs red lasers;
- High intensity green beams provide a working range of 30 m and up to 100 m with a detector;
- The rechargeable and removable REDLITHIUM USB 3.0 Ah battery provides all day run time of over 8 hours;
- 1x REDLITHIUM USB 3.0 battery replaces up to 6,000 alkaline batteries over the lifetime of the battery;
- 3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range and Pendulum Lock Mode to protect components during transport;
- Integrated magnetic bracket with rear mounted amplified rare earth magnets, 1/4? tripod thread and hang hole - allows attachment to steel stud, wooden stud and tripod;
- The bracket also provides the laser 360° rotation that pivots on plumb point, with an integrated micro control knob for faster point to point alignment;
- Detachable riser included for seeing the plumb point when placed on the ground or over steel track;
- Robust over-moulded construction with an IP 54 rating, the laser is water/ debris resistant and can withstand up to 1 m drops;
- Conveniently charge REDLITHIUM USB battery internally during use with micro-USB cable from USB power source or AC outlet;
- Fuel gauge on the top and side of the laser allows for fast checking of the REDLITHIUM USB battery charge;
- Includes 1x detachable riser and 1x track clip.
Technical Data
Parameter | Value |
---|
Voltage | 4
V |
Battery capacity | Li-Ion, 3.0 Ah
|
Working range | 30
m |
Laser classification | II
|
IP protection class | IP54
|
Colour of laser line | зелен
|
Laser projection | 2 линии / 2 точки
|
Compatible laser detector | LLD50 / LRD100
|
Working range detector | 50/100
m |
Self-levelling range | 4.0
° |
Self-levelling time | 3
s |
Weight | 0.9
kg |
Tripod thread | 1/4"
|
