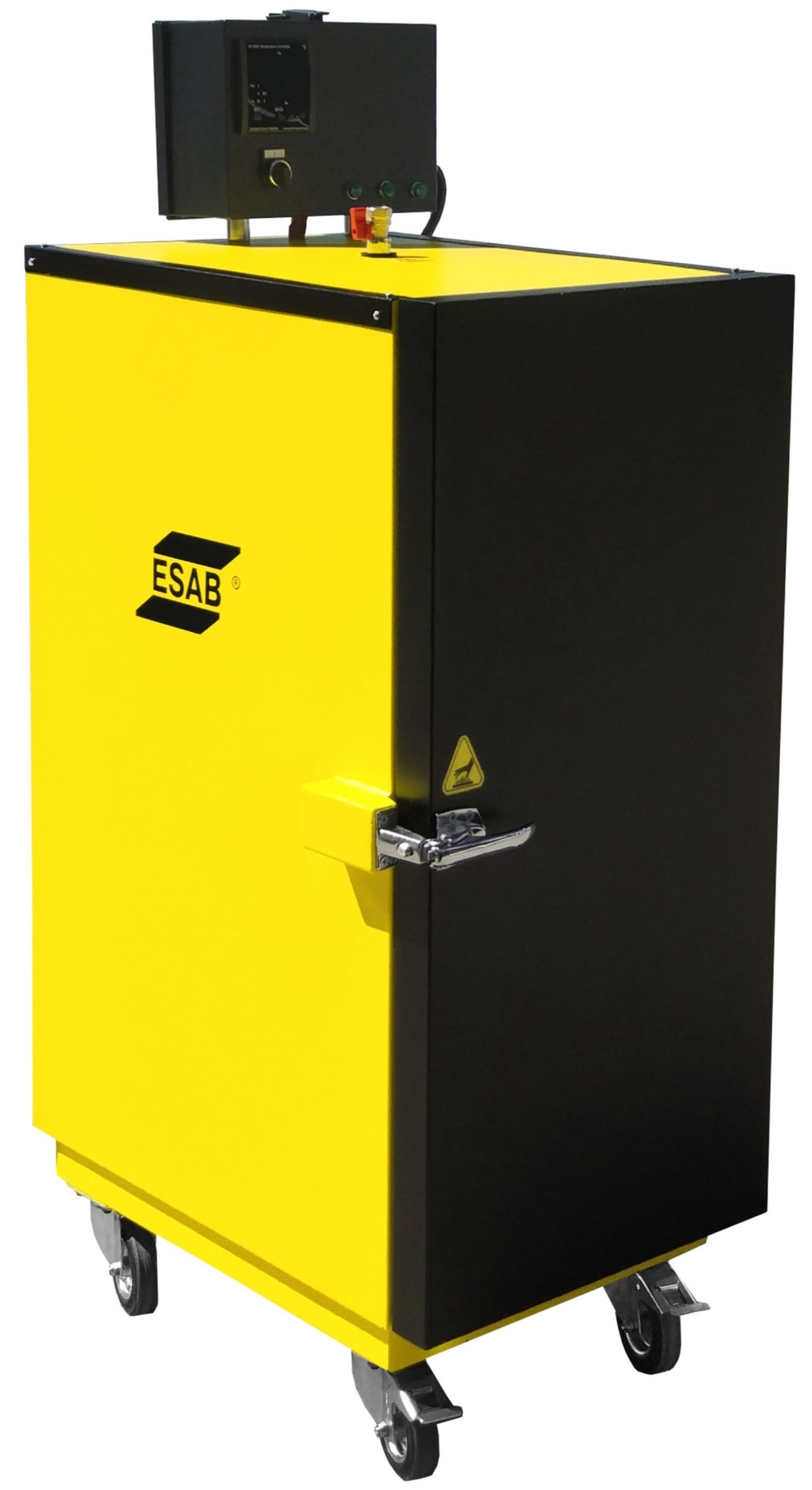

Electrode Drying Oven ESAB SDE 100 with Digital Thermostat.
Common Characteristics

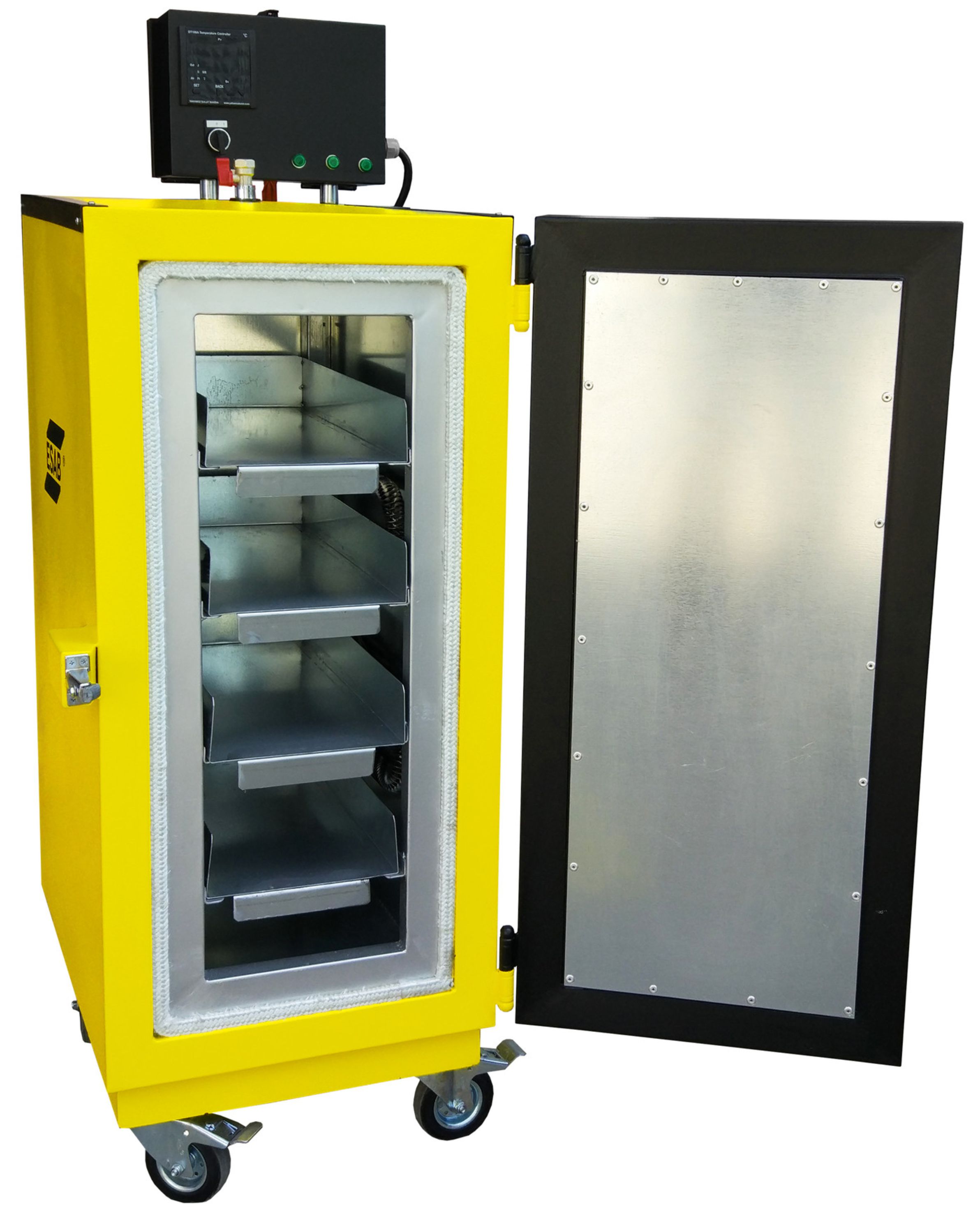

The SDE are large containers for drying and storing electrodes. It is easy to move and has a digital thermostat with a high range in storage temperature.
After drying, the temperature falls automatically to the recommended pre-set dry-storage temperature of 130 °C (260 °F).?
100 kg (220 lbs) storage capacity
From ambient to 400 °C (752 °F) storage temperature
Technical Data
| Parameter | Value |
|---|
| Capacity | 100
kg |
| Storage temperature | 130
С |
| Dryer temptemperature | 400
C |
| Voltage | 3ph,380 - 415
(V) AC |
| Power suply | 3
kW |
| Outer dimension | 530 x 720 /1380
mm |
| Weight | 90
kg |
