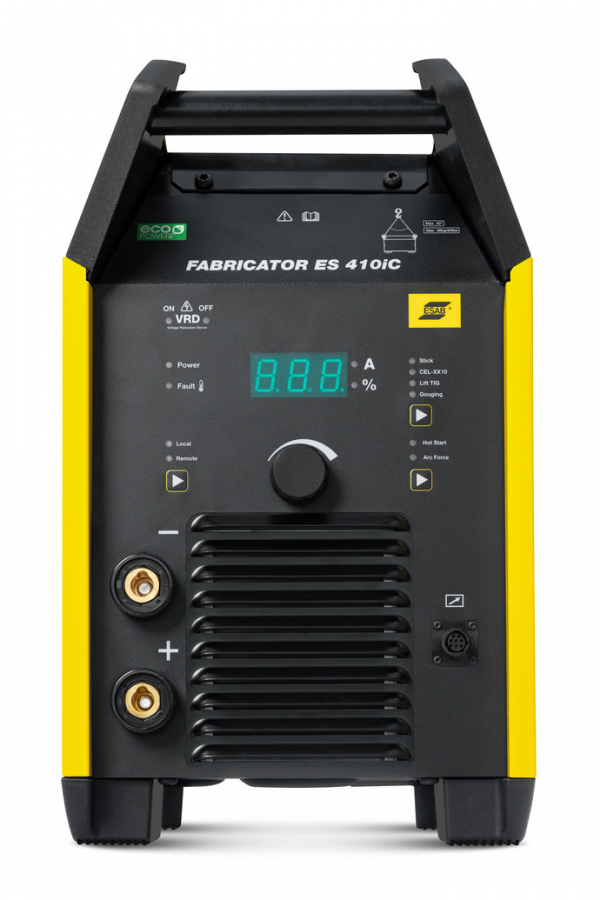

ESAB Fabricator ES 410iC CE
Common Characteristics
Fabricator ES 410iC is a heavy-duty inverter-controlled power source for MMA (Stick) welding, TIG (live-TIG) welding and CC Carbon-Air Arc Gouging.
The Fabricator ES 410iC is built to withstand rugged use making it a perfect solution for industrial usage. Ideal for heavy industries using all types of electrodes, including Cellulosic.
Technical Data
| Parameter | Value |
|---|
| Mains supply | 400/3
V/Ph |
| Setting range, MMA | 30 - 410
A |
| Setting range, TIG | 10 - 410
A |
| Maximum output 60% duty cycle, MMA | 410
A |
| Maximum output 100% duty cycle, MMA | 310
A |
| Maximum output 60% duty cycle, TIG | 410
A |
| Maximum output 100% duty cycle, TIG | 310
A |
| Enclosure class | IP 23S
|
| Dimensions, LxWxH | 525х280х475
mm x mm x mm |
| Weight | 35.2
kg |
