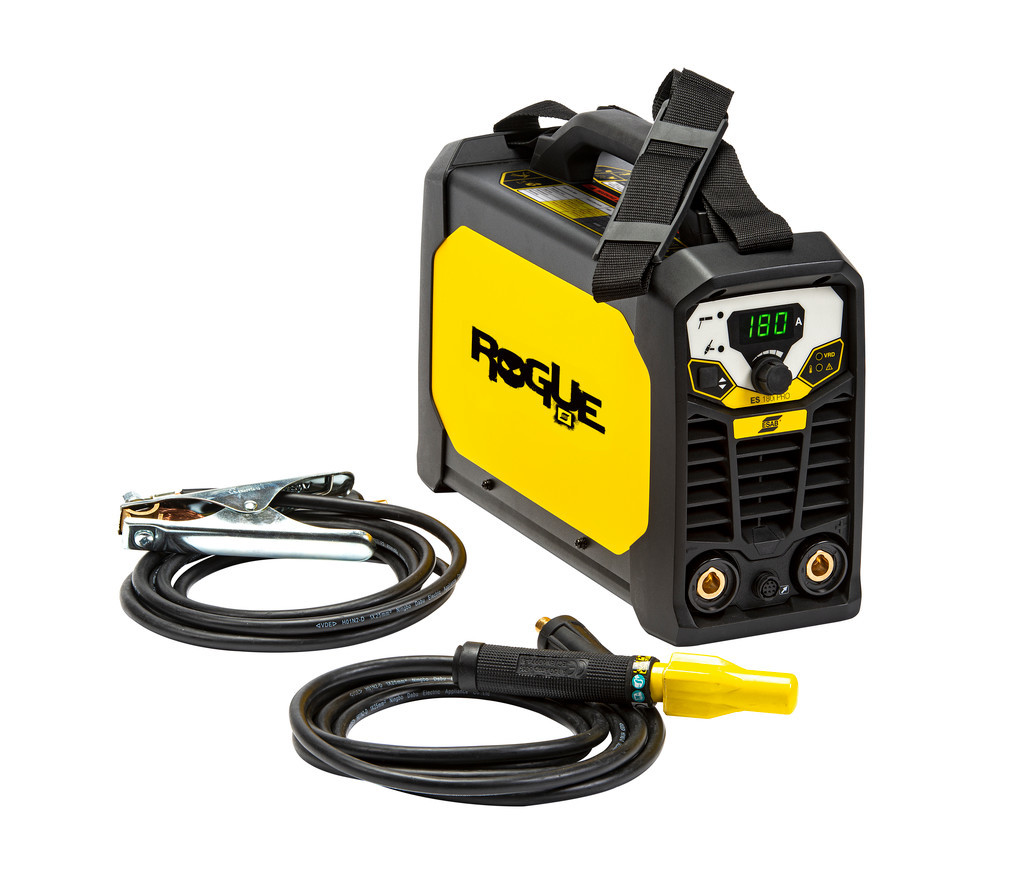

Inverter ESAB Rogue ES 180i PRO CE

ESAB Rogue ES 180i PRO CE.
Common Characteristics
The Rogue provides a smooth DC (Direct Current) welding power which allows you to weld a variety metals, such as alloyed and non alloyed steel, stainless steel, and cast iron. The Arc Force and Hot Start settings are adjustable and help the user find exactly the right arc for the job. Being digital the Micro-processor precisely controls all functions and provides Best-in Class welding performance across the amperage range of the machine. The Rogue can be used with electrodes up to 4.0mm O.
The Rogue can easily perform TIG -welding using a “Live TIG” start. Equip the power source with the optional TIG-Torch, which has a built-in gas valve and a regulator, and a bottle of gas and you are ready to weld mild steel or stainless steel, with or without filler material.
PFC ensures a stable arc, resistant to power fluctuations even while working on long extension cables up to 100 m.
Technical Data
ParameterValue
Mains supply230/1  V/Ph
Setting range, MMA20 - 180  A
Setting range, TIG10 - 180  A
Maximum output 25% duty cycle, MMA180  A
Maximum output 60% duty cycle, MMA116  A
Maximum output 100% duty cycle, MMA90  A
Maximum output 25% duty cycle, TIG180  A
Maximum output 60% duty cycle, TIG116  A
Maximum output 100% duty cycle, TIG90  A
Enclosure classIP23S
Dimensions, LxWxH403x153x264  mm x mm x mm
Weight8.2  kg
